Out-of-Round Glass Bottles: From Defect to High-Quality Control Insights
Mastering key technologies for horizontal uniformity and vertical stability to prevent out-of-round defects, enhance production efficiency, and improve customer experience
In glass bottle manufacturing, the roundness of the bottle body not only affects the product’s appearance, but also directly impacts filling efficiency, labeling quality, and production safety.

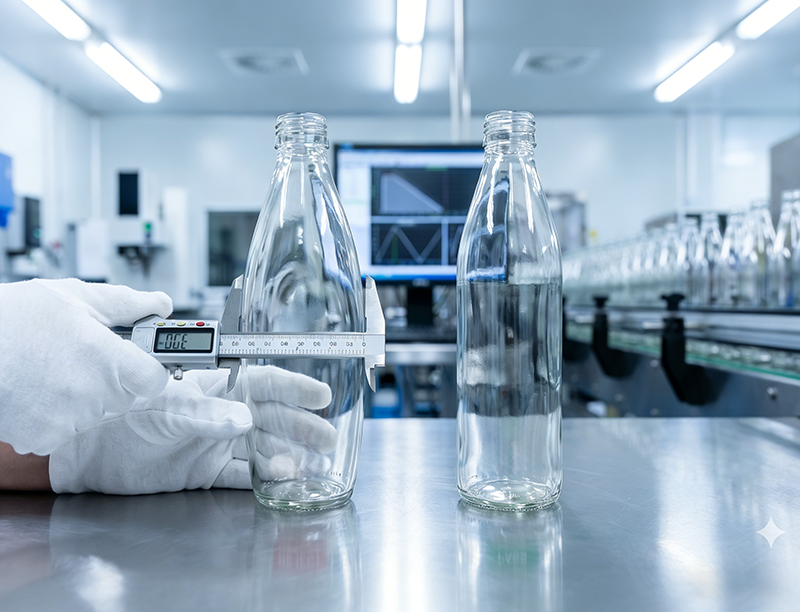

So-called “out-of-round” bottles refer to a condition in which the difference between the maximum and minimum outer diameters on the same horizontal plane of the bottle body exceeds the allowable tolerance. This out-of-roundness can be quickly identified by measuring the maximum and minimum diameters at the same level using a vernier caliper, or by inspecting the bottle with a diameter gauge. In practical production, operators can often detect roundness defects simply by lightly holding the bottle with cotton gloves and rotating it, judging by tactile feedback.
Bottle out-of-roundness not only affects visual appearance, but can also cause three major practical issues for customers. First, poor roundness leads to labeling defects, negatively affecting packaging consistency and brand image. Second, bottles are more likely to jam or stack improperly on production lines, reducing overall efficiency. Finally, uneven roundness can result in localized thin contact areas, making bottles more prone to breakage on high-speed production lines, thereby increasing scrap rates and safety risks.
Therefore, strict adherence to operating procedures and technical standards, along with early detection and prevention of out-of-round defects, is a critical factor in ensuring product quality and customer satisfaction.
Industry standards for bottle roundness are based on product applicability principles. For round bottles with neck diameters under 30 mm, some manufacturers adopt the formula: “roundness standard = (bottle diameter × 0.75) + 0.3 mm.” For a bottle with a 73 mm diameter, the out-of-round standard would be no more than 2.4 mm, aligning closely with GPI guidelines. It is important to note, however, that national standards for beer bottles do not specify roundness thresholds. For food glass jars, the QB/T 4594-2013 standard limits out-of-roundness to no more than 75% of the formula result for products with neck diameters ≥30 mm and nominal capacities of 50 ml to 5000 ml.
The causes of out-of-round bottles are diverse, spanning process, equipment, and material factors. Common scenarios include: excessive machine speed or overly high glass temperature causing the initial mold to open too quickly; insufficient blow pressure or low mold temperature leading to poor venting; slow machine speed or new mold conditions producing uneven glass distribution; mold material defects or blocked vent holes; and a combination of high machine speed and uneven glass distribution. Notably, multiple types of out-of-round defects can occur simultaneously on a single machine or across different production lines, making prevention and correction particularly challenging.
The underlying mechanism of out-of-round formation is closely related to glass shrinkage and cooling behavior after molding. The hotter the bottle upon mold release, the greater the shrinkage, and uneven wall thickness exacerbates inconsistencies in contraction during cooling. Cold molds or impact from bottle pushers can distort bottle shape, while excessive cooling from air jets, stagnation plates, or conveyor airflow can cause uneven contraction around the circumference, producing out-of-round defects. These factors interact in complex ways, which is why out-of-round bottles remain a frequent and difficult-to-eliminate issue in production.
Effective prevention of out-of-round bottles requires comprehensive process optimization. Achieving uniform glass distribution is fundamental; the smaller the thickness variation, the more consistent the shrinkage. Key factors include uniform drop temperature, consistent drop shape, minimal mold temperature variation, optimized timing, and precise mold design. For slender, tall bottles, implementing early counter-blow timing can further improve glass distribution, enhancing roundness.
Ensuring complete bottle set-up is equally important. Proper mold temperature management can reduce the likelihood of defects caused by overheating or underheating. Generally, mold temperatures above 540°C can lead to thermal-related defects, while temperatures below 460°C may result in insufficient blow pressure or poor venting. Machine speed, glass temperature, mold geometry, venting, blow pressure, and blow-head exhaust rates must all be finely tuned according to product design to ensure proper parison set-up. For new molds exhibiting roundness issues, temporarily blocking vertical cooling holes at the mold seam can raise the seam temperature, improving expansion and venting so the glass adheres to the mold wall and solidifies evenly. After a few production cycles, the block can be removed to prevent seam cracking.
Uniform cooling is also critical. Airflow from stagnation plates and conveyor systems should be sufficient but gentle, ensuring that the bottle contracts evenly around its circumference. In essence, maintaining lateral uniformity and vertical stability is a fundamental principle of glass manufacturing and serves as the cornerstone for controlling out-of-round defects.
From a customer perspective, these technical optimizations translate directly into value. Even, round bottles facilitate accurate labeling, improve line efficiency, and reduce breakage, enhancing the overall product experience. For beverage, pharmaceutical, and premium cosmetic companies, controlling bottle roundness is not merely a production metric—it ensures visual appeal, safety, and reliability. By applying precise process control and continuous optimization, manufacturers can reduce defect rates while delivering consistent, high-quality bottles that strengthen customer trust and reinforce brand identity.
Out-of-round bottles may seem like a minor defect, but their impact on product quality and brand perception is significant. Mastering the principles of lateral uniformity and vertical stability, carefully managing mold temperature, blow pressure, and cooling, and optimizing mold design are essential for producing high-end glass bottles. This approach not only minimizes defects but also demonstrates a manufacturer’s technical expertise and commitment to customer value, establishing a professional and trustworthy brand image in a competitive market.
